Prevention of dust and dirt build up on heating / cooling coils within ventilation systems
•Ventilation in industrial and civil conditioning plants.
• Air treatment plants, air generators. Spray booths.
Filter cells made of galvanized sheet frame which encloses a filter panel pleated in order to increase surface. Panel pleated with two galvanized protection nets.
REDUCED DIMENSIONS: panel pleating allows the use of a wider filter surface in the same dimensions than a flat filter.
Filter cells made of galvanized sheet frame which encloses a filter panel pleated in order to increase surface. Panel pleated with two galvanized protection nets.
REDUCED DIMENSIONS: panel pleating allows the use of a wider filter surface in the same dimensions than a flat filter.
Filter cells made of galvanized sheet frame which encloses a filter panel pleated in order to increase surface.
TYPE: Prefilter
FRAME MATERIAL: Galvanized sheet
MEDIA: Polyester fiber
EN 779: 2002 filter class: G3, G4
RECOMMENDED FINAL PRESSURE DROP: 250 Pa.
TEMPERATURE: 80°C-100°C maximum in continuous service

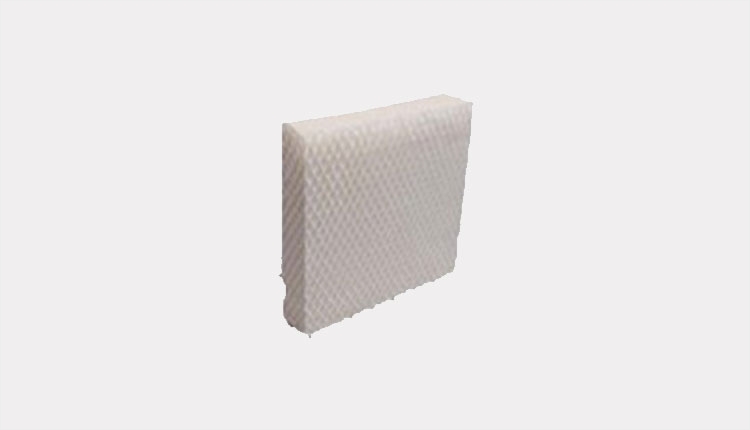

FIRE RATING: DIN 53438 Class F1PLAIN PANEL FILTER
